Not Recommended for New Designs - Replaced by VTM48Ex240y012A00

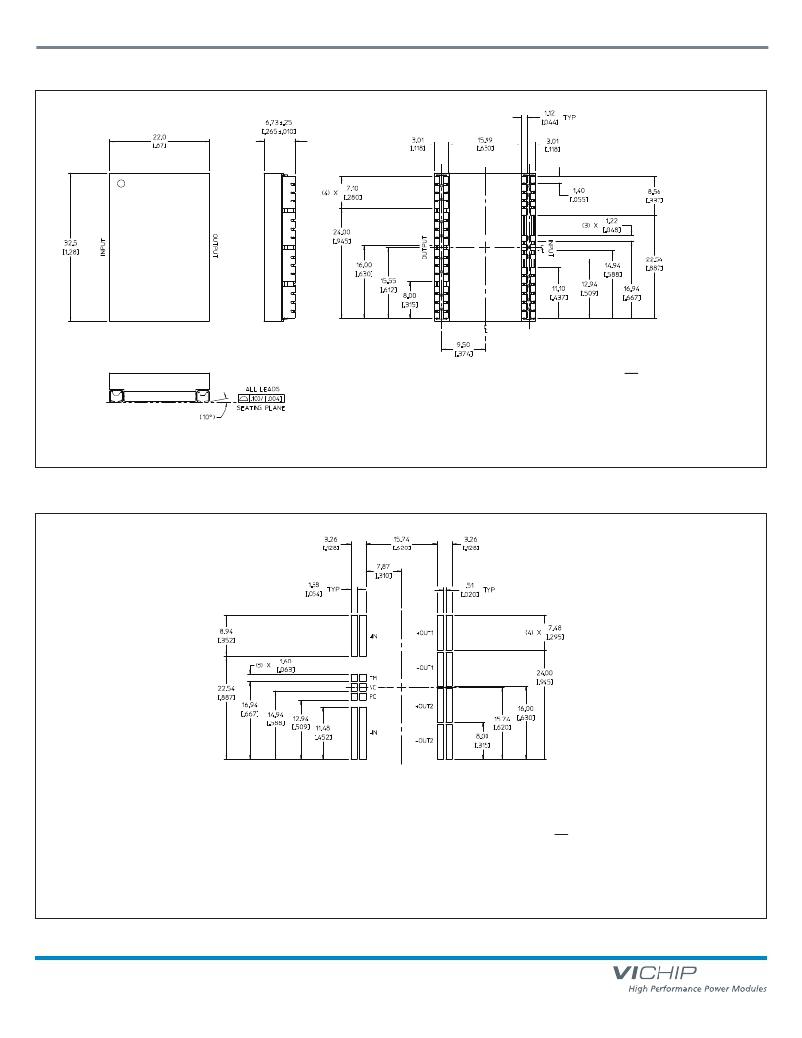

Mechanical Drawings
TOP VIEW ( COMPONENT SIDE)
V048F240T012
BOTTOM VIEW
NOTES: mm
1. DIMENSIONS ARE inch .
2. UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
.X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
3. PRODUCT MARKING ON TOP SURFACE
DXF and PDF files are available on vicorpower.com
Figure 10 — V T M module J-Lead mechanical outline; Onboard mounting
RECOMMENDED LAND PATTERN
( COMPONENT SIDE SHOWN )
NOTES: mm
1. DIMENSIONS ARE inch .
2. UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
.X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
3. PRODUCT MARKING ON TOP SURFACE
DXF and PDF files are available on vicorpower.com
Figure 11 — VTM module J-Lead PCB land layout information; Onboard mounting
VTM ? Current Multiplier
Page 6 of 11
Rev 2.9
01/2014
vicorpower.com
800 927.9474
